Lafayette LA-1050 Integrated Amplifier

Introduced September 1974 in Lafayette's annual catalog 750 (for 1975), and featured again in catalogs 760 (for 1976) and 770 (for 1977).

SEE ALSO ... History of the LA-125 Amplifier Series         The Famous Arty Faxx page .... SEE ALSO


LA-1050 Amplifier .. Catalog 750

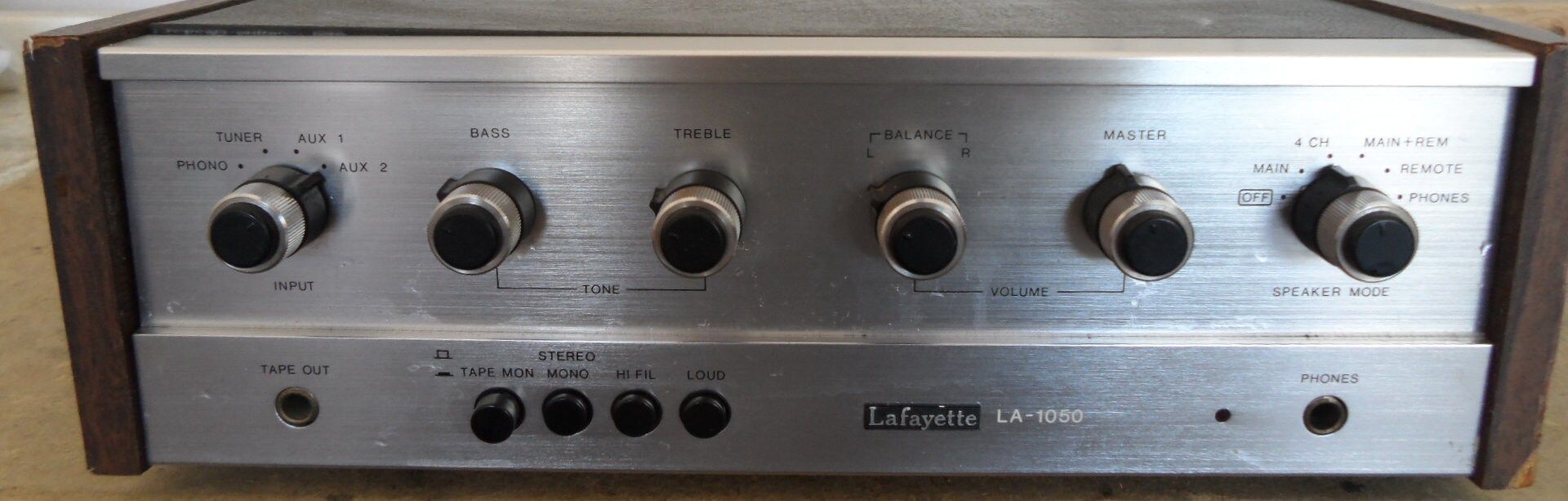

LA-1050 Front Panel Buttons, Knobs and Phone Jacks

Top Row -- INPUT (Phono-Magnetic, Tuner, Aux-1, Aux-2)       Bass       Treble       Balance       Volume
         POWER OFF / SPEAKER MODE (Power Off, Main, 4-Channel, Main + Remote, Remote, Headphones)

Bottom Row -- TAPE OUT Jack (signal goes to tape unit)         Tape Monitor Button
            Stereo-Mono Mode Button         High Filter Button         Loudness Button
            Power-On Light         Stereo Headphones Jack

NOTE -- The TAPE OUT and Headphone Jacks each accept a 1/4-inch 3-conductor stereo phone plug.

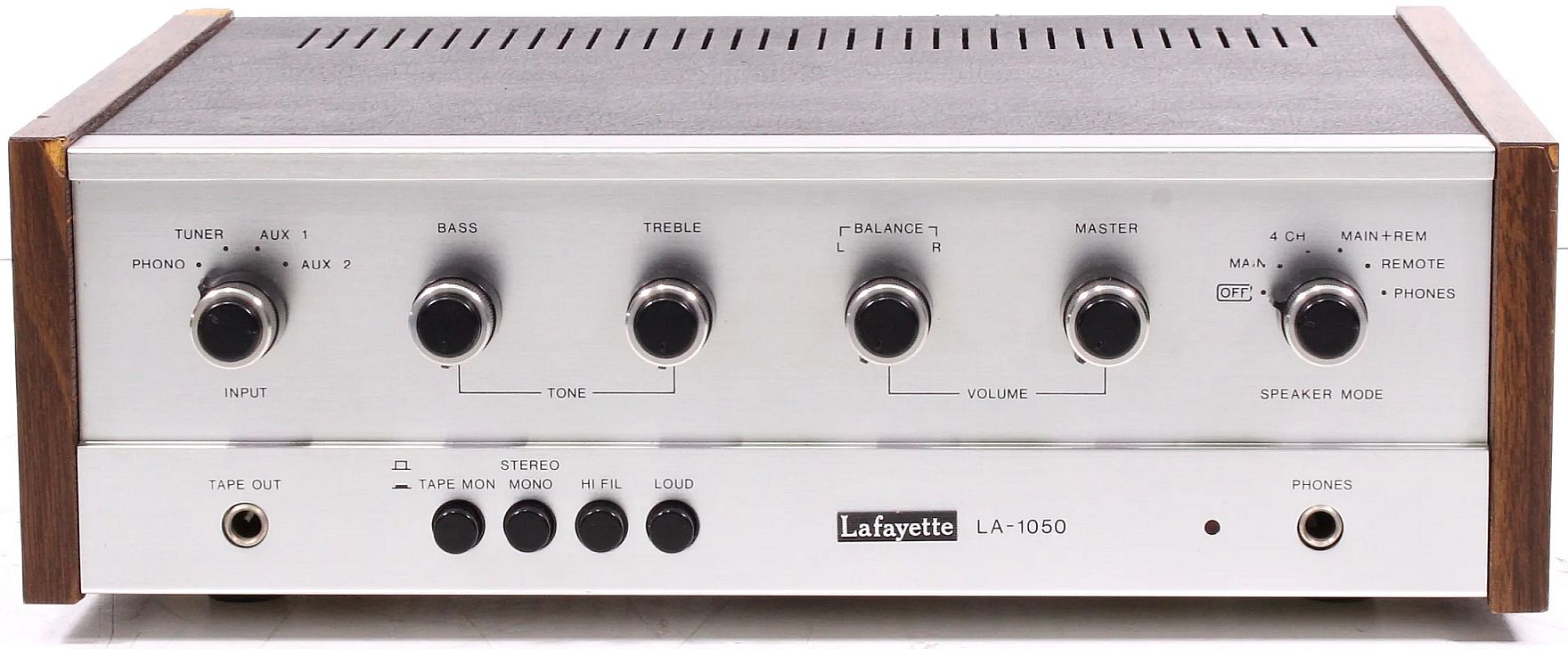

LA-1050 Front Panel

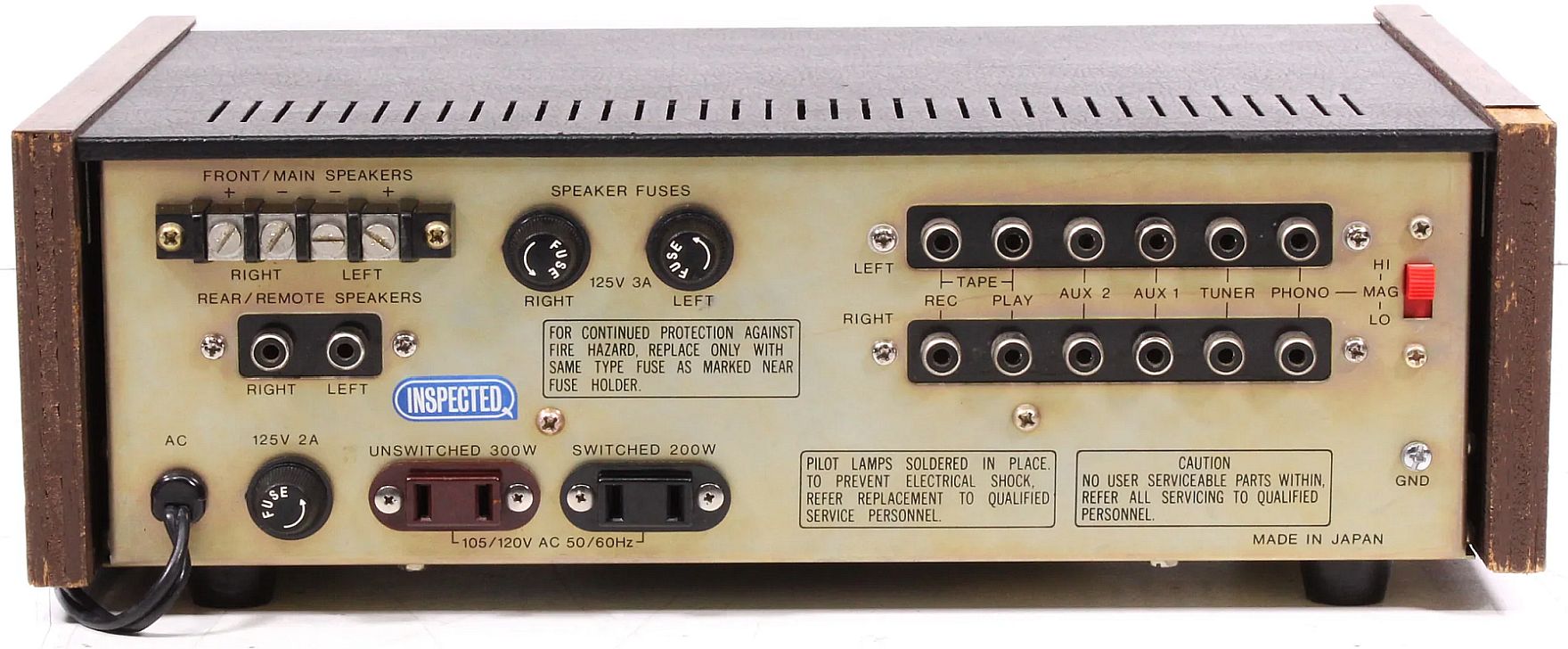

LA-1050 Rear Panel Input-Output Jacks, Speaker Terminals, AC Outlets

Left Half of Rear -- Speaker Connections: Screws for Main Pair   Pin Jacks for Remote Pair     Speaker Fuses
              AC Line Cord     AC Line Fuse     AC Unswitched and Switched Convenience Outlets

Right Half of Rear -- Pin Jacks For: Tape Record and Play, Aux-2, Aux-1, Tuner, Magnetic Phono
                Mag Phono Hi-Lo Sensitivity     Phono and Unit Ground Terminal


LA-1050 Rear Panel
