Lafayette LA-125T Integrated Amplifier

Introduced September 1967 in Lafayette's annual catalog 680 (for 1968), and featured again in catalog 690 (for 1969).

SEE ALSO ... History of the LA-125 Amplifier Series         The Famous Arty Faxx page .... SEE ALSO


LA-125T Amplifier .. Catalog 680
LA-125T Front-Panel Switches, Knobs and Phone Jacks

ᴏ   Outer Part of Dual Knob       ᵒ   Inner Part of Dual Knob

Top Row -- Power and Speakers (Power OFF, Main, Main + Remote, Remote, Headphones)
        Bass (Left   ᴏ, Right   ᵒ)     Treble (Left   ᴏ, Right   ᵒ)     Volume (ᴏ) and Balance (ᵒ)
        MODE (Balance-L, Balance-R, Mono, Stereo, Reverse Stereo, Input-L, Input-R)
        SELECTOR: Tape Head, Phono-1 (Ceramic), Phono-2 (Magnetic), Tuner, Aux, Mic/Musical Instrument

Bottom Row -- Stereo Headphones Jack         Low Filter Switch         High Filter Switch
            Loudness Switch         Tape Monitor Switch
            Microphone/Musical Input Jack         TAPE OUT Jack (signal goes to tape unit)

NOTE -- The Headphone, Mic/Musical and Tape Out Jacks each accept a 1/4-inch 3-conductor stereo phone plug.



LA-125T ... Front and Rear Panel Views

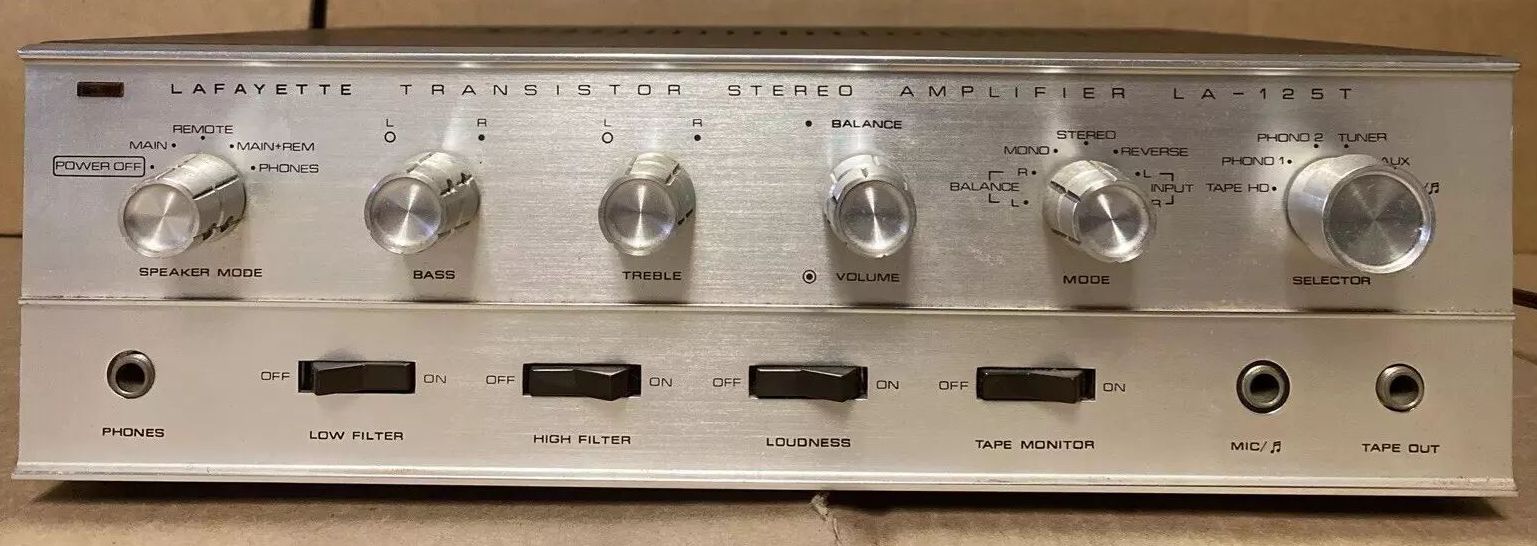

LA-125T Front View

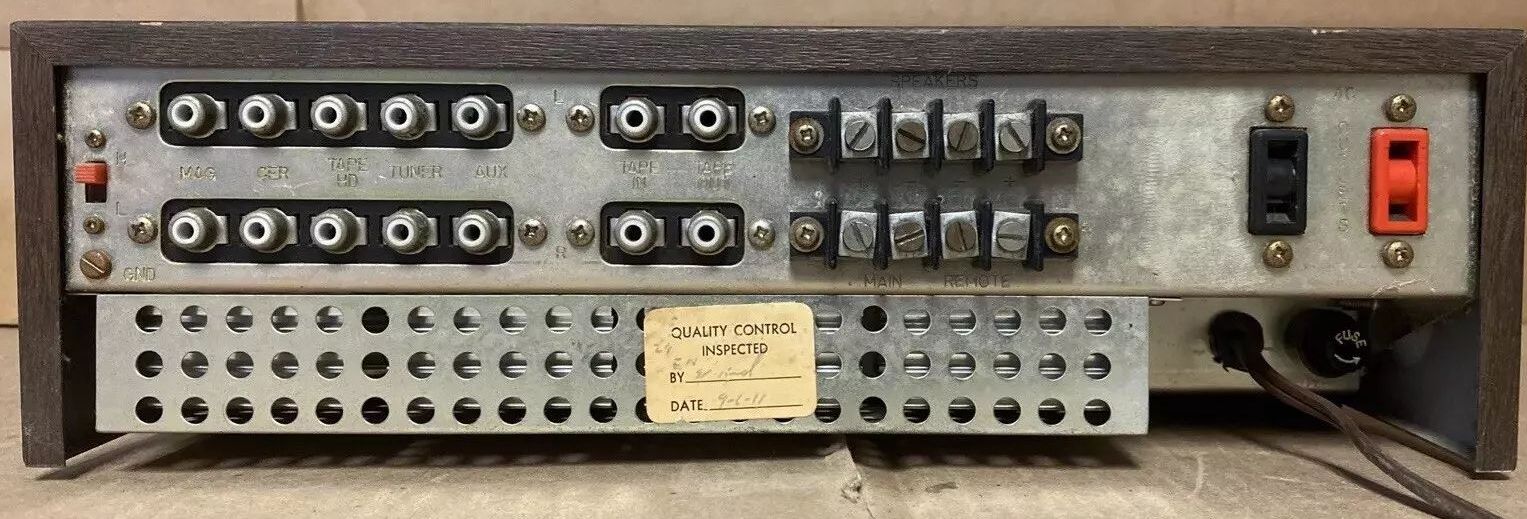

LA-125T Rear View
