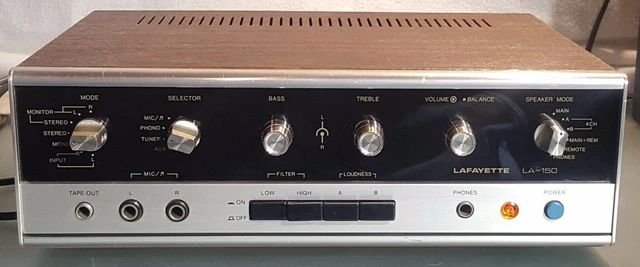

Top Row -- MODE / TAPE MONITOR (Input-L, Input-R, Mono, Stereo, Tape-Stereo, Tape-Left, Tape-Right)
SELECTOR (Aux, Phono, Tuner, Mic/Musical Instrument) Bass (Left ᴏ, Right ᵒ) Treble (Left ᴏ, Right ᵒ) Volume (ᴏ) and Balance (ᵒ) SPEAKER MODE (Main, 4-Channel A, 4-Channel B, Main + Remote, Remote, Headphones) Bottom Row -- TAPE OUT Jack (signal goes to tape unit) Left and Right Mic/Musical Jacks Low Filter Button High Filter Button Loudness A and B Buttons Stereo Headphones Jack Power-On Light POWER On-Off Button NOTE -- The Headphone and Tape Out Jacks each accept a 1/4-inch 3-conductor stereo phone plug. The Microphone/Musical Jacks each accept a 1/4-inch 2-conductor mono phone plug. ADDITIONAL -- The rear-panel ceramic phono jacks are --DISABLED-- if a magnetic phono cartridge is plugged into the magnetic jacks. |
